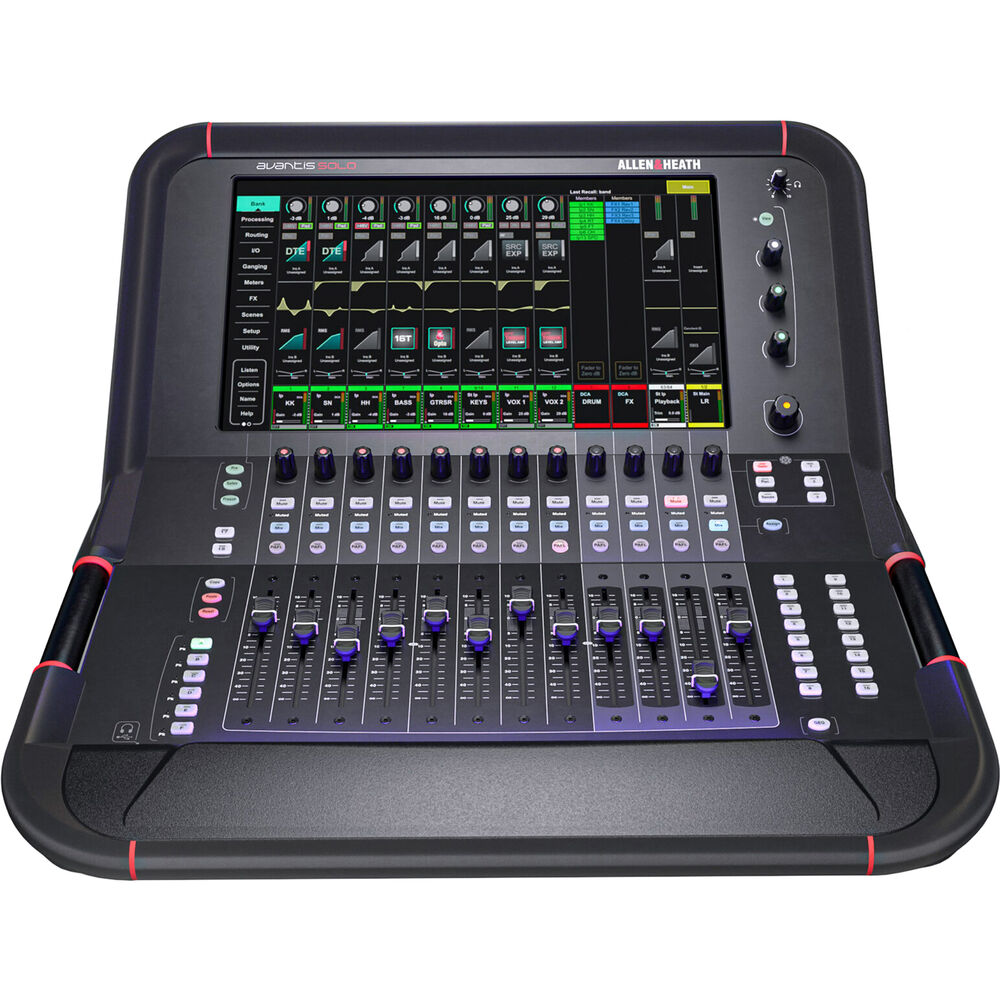

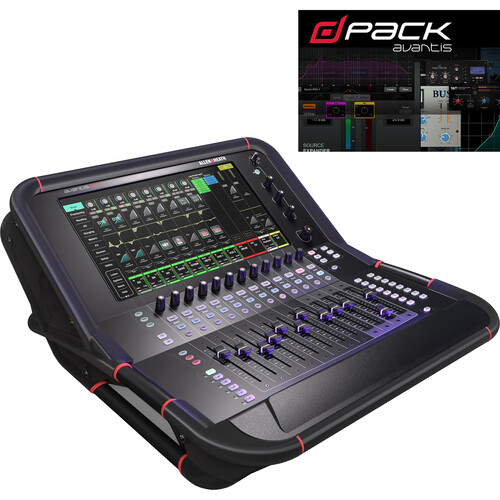

Powered by the advanced 96 kHz XCVI FPGA engine, the Allen & Heath Avantis Solo is an advanced 64-channel / 42-bus configurable digital mixing console with a 15″ touchscreen and a superflexible workflow. The mixer features extensive I/O options and can be upgraded with processing from the flagship dLive mixing system.

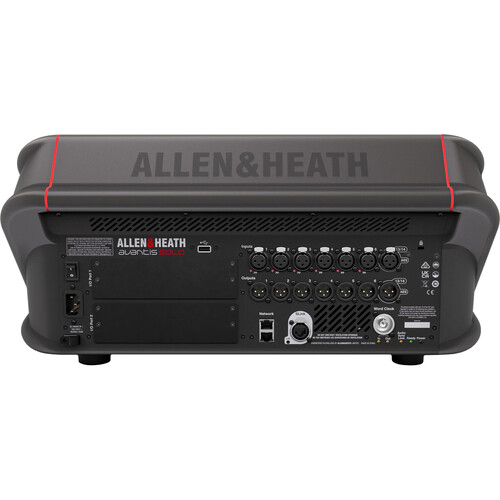

Continuity UI harnesses the power of the 15.6″ Full HD (1080p) touchscreen to allow you to see and instantly interact with your most used parameters, enabling a seamless connection between the physical controls and the displays. The rear panel provides 6 XLR (Mic/Line) inputs and 6 XLR outputs as well as a stereo AES inputs and outputs. The SLink port allows you to connect to a multitude of hardware expansion options and controllers. Two I/O ports allow you to expand the Avantis even further with Dante, Waves, gigaACE, SuperMADI, and fibreACE cards.
- XCVI FPGA core
- 96 kHz sample rate
- Variable bit depth
- 96-bit accumulator
- Class leading, ultra-low latency (0.7ms)
- 15.6” Full HD capacitive touchscreen with gesture control
- Innovative compact design with super-tough, lightweight full-metal chassis
- 64 input channels with full processing (LPF/HPF, gate, PEQ, comp, delay)
- Configurable 42-bus architecture with full processing (PEQ, GEQ, comp, delay) on mix outputs

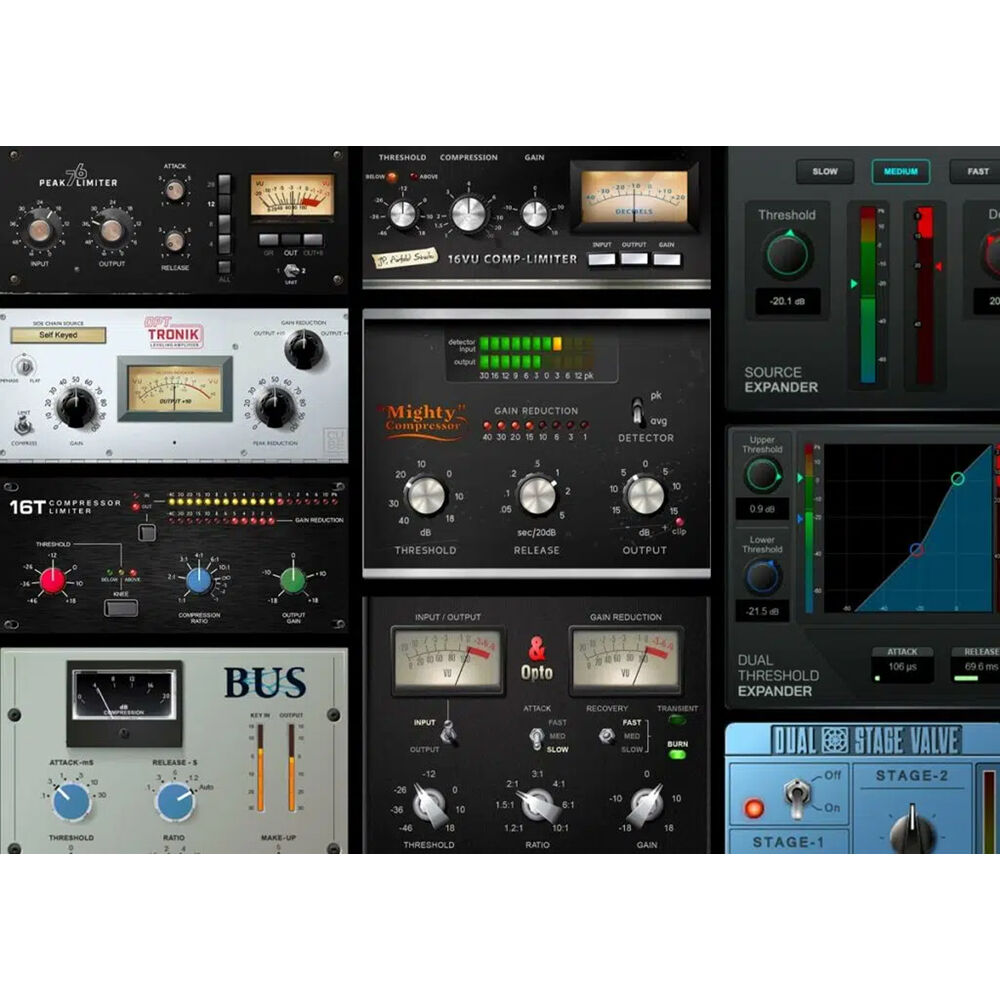

- DEEP processing ready
- 72 fader strips (12 faders, 6 layers) with optional dedicated master section
- SLink EtherCON connection for remote audio using gigaACE, GX, DX, ME, and dSnake protocols.
- 6 local mic/line inputs (XLR)
- 6 local line outputs (XLR)
- 1 stereo AES input (XLR)
- 1 dtereo AES outputs (XLR)
- Two I/O ports, both capable of 128×128 operation at 96 kHz—for optional cards inc. Dante, MADI and gigaACE
- 8 Mute Groups
- 16 DCA Groups with DCA Spill
- 12 Stereo FX with dedicated FX Returns
- 18 assignable SoftKeys
- 3 assignable Custom Rotaries
- Comprehensive metering with multipoint peak detection
- Integrated fader illumination
- Built-in signal generator, RTA and spectrogram
- AMM (Automatic Mic Mixer) up to 64 channels across 1, 2, or 4 zones
- Quick copy/paste/reset for parameters
- User permissions to restrict operator access
- 500-scene memories per show
- Channel Safes, Global and per Scene Recall Filters
- Onboard stereo recording and playback
- USB transfer of Scenes, Libraries, Shows, Audio Files
- MIDI Control Driver for MIDI control via TCP/IP
- Wireless remote mixing apps for iPad
- BNC word clock connector (input or output)
- ¼” TRS and 3.5mm headphone outs with dedicated analo volume control
